Delay Doppelgänger.
DIG unearths the true soul of digital delay and doubles it—two simultaneous, integrated delays with the captivating rack delay voicings from the 1980s and today, for incredible expressive potential.
Effortlessly create your own world of intricate and synchronized echoes, along with hypnotic and atmospheric repeats that blur the line between delay and reverb. Stretch your sonic horizons with five musically satisfying rhythmic subdivisions and three dual delay routing options. Go from syncopated, pulsating delay patterns, to evocative, spaced-out echo trails all in a compact, pedalboard-friendly format.
Rack to the Future.
Rack-mount digital delays of the ’80s ushered in a new era of audio effects. The innovative electronic designs generated the cleanest delays yet to be heard, but also created their own special and intriguing sonic characteristics. Thirty-plus years later, these sounds remain as distinctive and inspiring as ever.
Series, Parallel, Ping Pong
Set up your two delays in one of three configurations. Series is like setting up pedals in a chain on your board, feeding Delay 2 into Delay 1. Parallel will orient your delay lines so that they remain independent—Delay 1 in the left channel and Delay 2 in the right channel. With Ping Pong, each delay acts as a ping pong delay, interacting together when both Mix knobs are turned up.
Sound design:
- Two simultaneous, integrated delays, with unique digital rack delay voicings
- Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats
- One modern and two classic digital delay voicings: 24/96, adm, 12 bit
- Five rhythmic subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter
- Three choices for delay line modulation: Off, Light, Deep
- Five “hidden” knobs for deep dual delay control: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats
- Selectable Free Mode disables subdivisions and synchronization
- Press and hold Circular Repeats effect
- 20ms – 1.6s delay range (40ms – 3.2s with Half Note Delay 1 Subdivision)

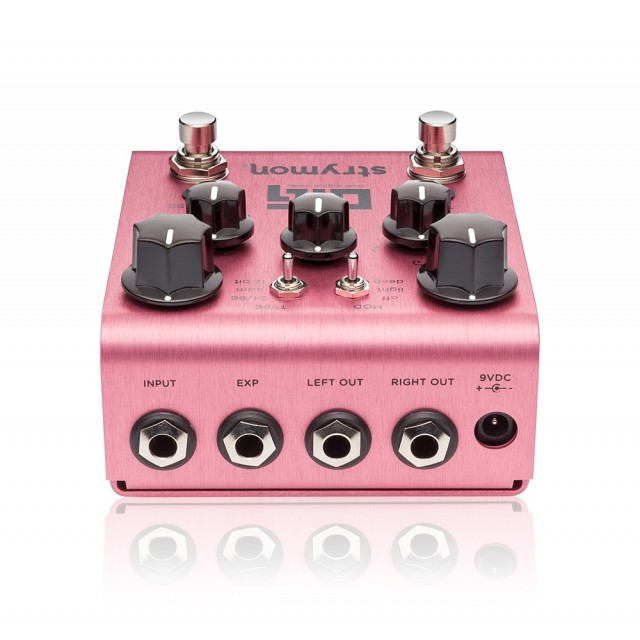

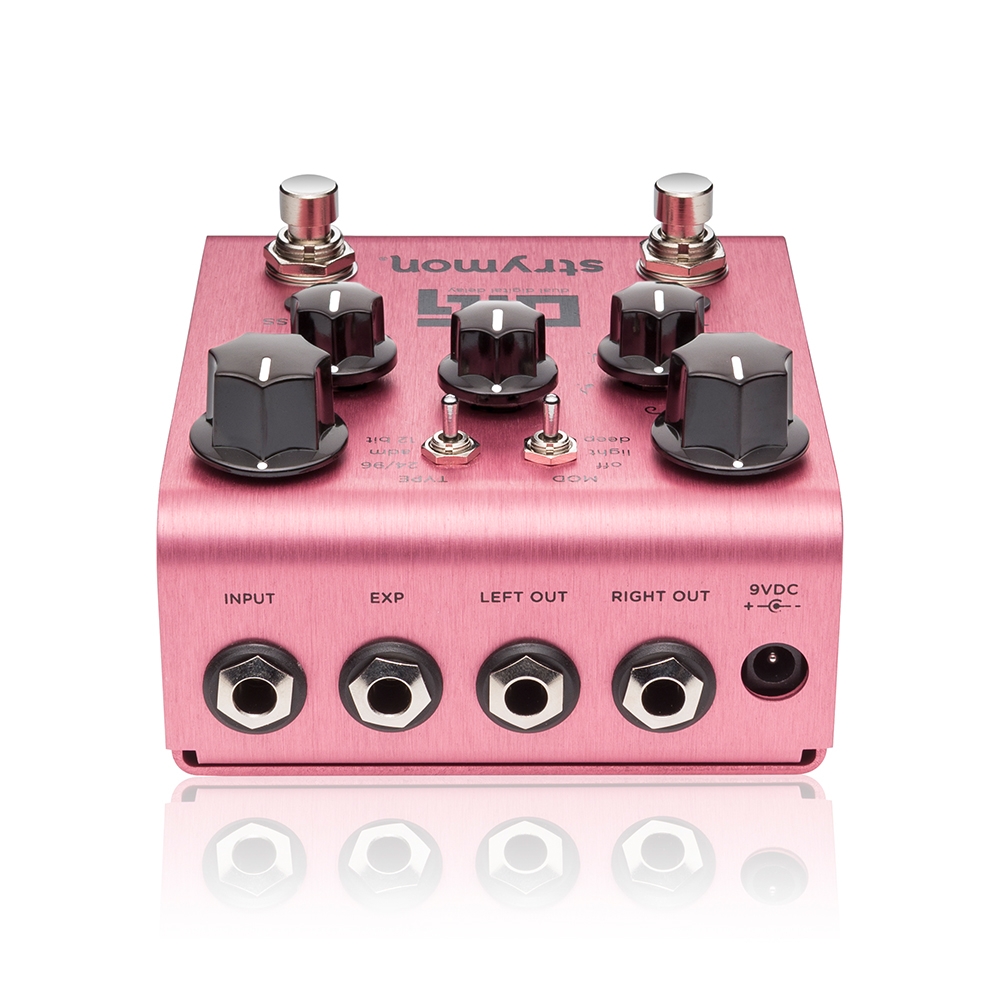

Ins & outs:
- High impedance mono input, with selectable TRS stereo input
- Stereo output
- Three signal routing configurations: Series, Parallel, Ping Pong
- Tap tempo and Bypass footswitches
- Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter), external tap pedal (for remote control of tempo), or Favorite switch (to save a Favorite preset)
Audio quality:
- Super low noise, high performance 24-bit 96kHz A/D and D/A converters
- 115db typical signal to noise
- Analog dry path for a zero latency dry signal that is never converted to digital
- +8dBu maximum input level easily handles instrument and line signals
- 20Hz to 20kHz frequency response
- Premium analog front end and output section
- Super high performance SHARC DSP in a compact form factor
- 32-bit floating point processing
